Product Overview

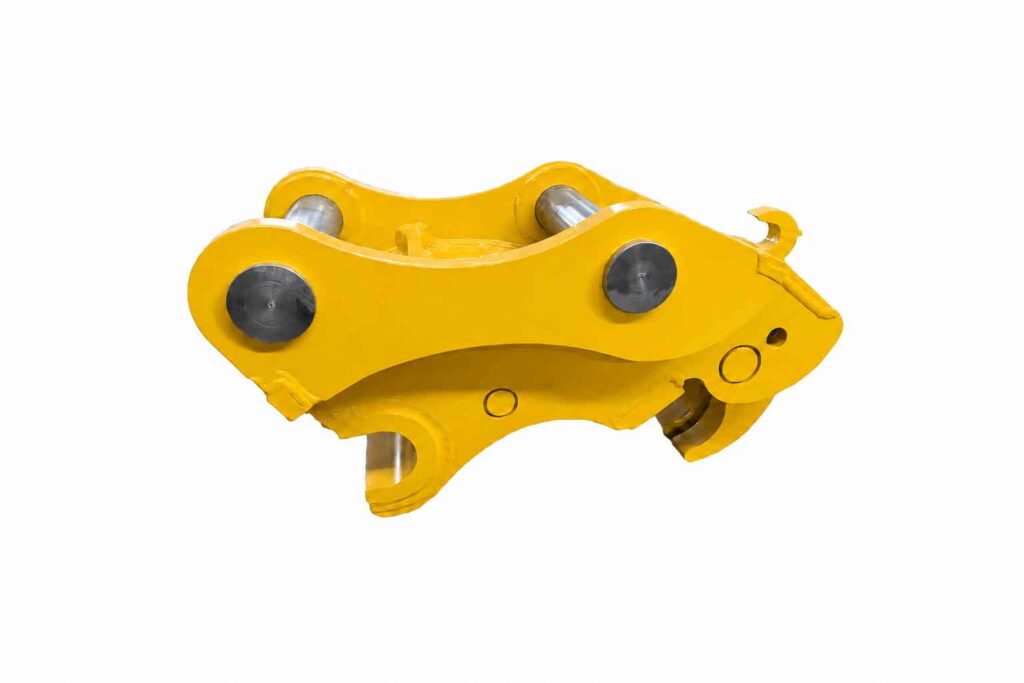

Hydraulic Coupler for Cab-Side Changeover
For hydraulic quick coupler orders, the factory check starts beyond the pins. The coupler has to match the machine pickup, hydraulic line route, hose position, and the attachments the excavator needs to carry. This setup is usually reviewed when the operator wants less outside-machine changeover during bucket or attachment work. Before supply, we check whether the hydraulic side and the coupler fit can work together on the same carrier.
Key Product Features
Hydraulic coupler build is checked around the locking route, pickup contact, and hose clearance, not only the coupler frame.
Hydraulic Locking Route
The lock and release movement is checked with the hydraulic setup, so the coupler can work with the carrier layout.
Coupler Pickup Fit

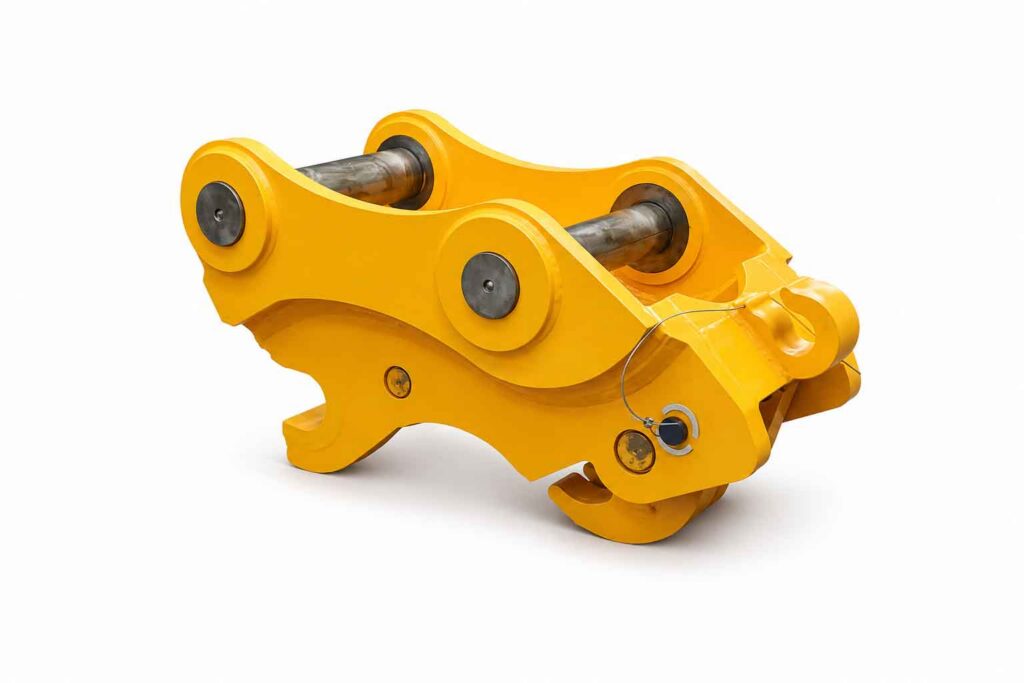

Hook position, pin centres, and pickup contact are matched against the machine and the attachments to be used.
Hose Clearance Check
Hose route and moving clearance are reviewed around the arm, coupler body, and attachment movement area.
Hitch Uses
Common Uses of the Hydraulic Quick Coupler
Hydraulic quick coupler requests often come from jobs where the machine changes tools several times in a day. When every change means leaving the cab, the lost time adds up quickly.
Frequent Tool Changes
Used when one excavator moves between buckets, rippers, breakers, or other compatible attachments during the same job.
Cab-Side Bucket Changeover
A better fit for operators who need bucket changes handled from the cab, where the machine is already prepared for hydraulic control.
Mixed Attachment Work
Useful when the carrier works with different attachments, but each tool still needs its pickup and clearance reviewed.
Hydraulic Coupler Fit & Setup
A hydraulic coupler has to match more than the pins. The carrier pickup, hose route, lock movement, and attachment seating all need to work together before the coupler build is confirmed.
Carrier Pickup

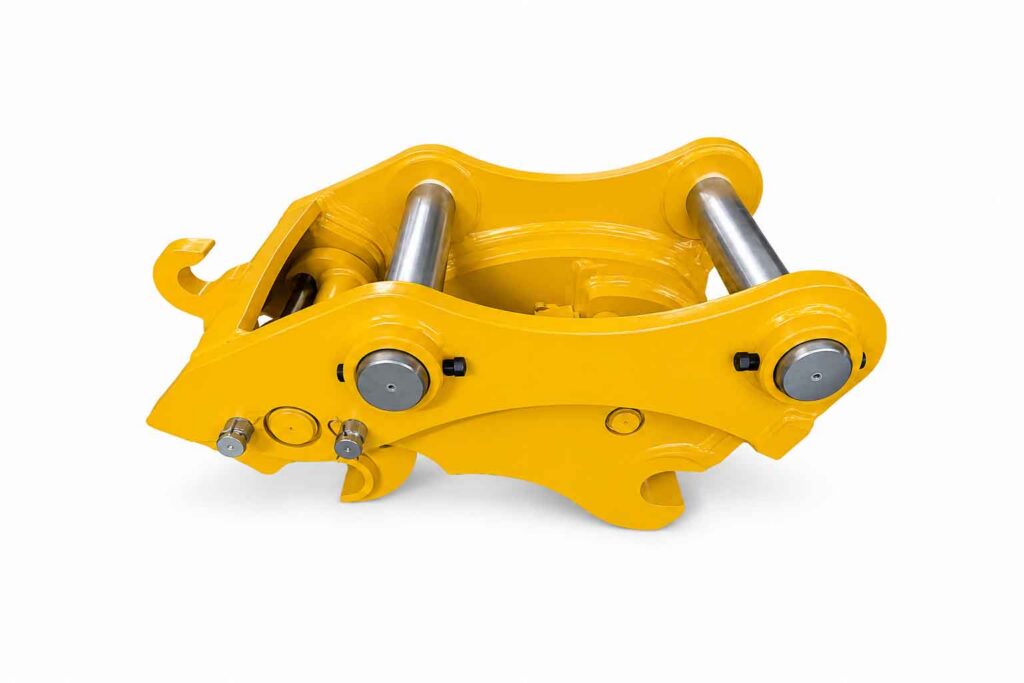

Pin centres, arm width, linkage layout, and pickup position are matched against the coupler body.
Hydraulic Line
Hose path, control preparation, and hydraulic connection points are checked around the arm and coupler area.
Lock and Release
The lock needs room to move, the hoses need space to sit cleanly, and the attachment has to seat without unwanted contact.
What To Check
A clear fit request helps avoid the wrong coupler build. Machine details, pickup dimensions, hydraulic information, and photos are usually enough to start the review.
Machine Setup
Send the excavator brand, model, operating weight, and any current bucket, hitch, or coupler setup.
Pin & Linkage
Provide pin diameter, pin centres, arm width, bucket ear spacing, and pickup measurements if available.
Hydraulic Line
Share hose layout, hydraulic connection points, control setup, and any existing quick hitch preparation.
Photos or Drawings
Side photos of the arm, bucket pickup, hose area, and current attachment setup help confirm the next step.
Our Products
Related Products
Excavator Buckets
Buckets are the main tools changed through a coupler, so pickup spacing and bucket ears should be checked together.
Excavator Ripper
A excavator ripper may work on the same carrier when the machine switches between loosening ground and bucket work.
Excavator Breaker
Breaker use needs careful review because mounting, hydraulic setup, and working clearance can affect compatibility.
Product Inquiry
Request a Hydraulic Coupler Fit Check?
Send the machine model, pin details, pickup photos, hydraulic line information, and the attachments you plan to use. We will check the hydraulic quick coupler fit before quote.
